150m Large Rotary Torque Hydraulic Water Well Drilling Machine With Fashion And Compact Design
Product Description
The RCF150C small water well drilling rig is a product of our independent research and development. This new generation DTH rig is equipped with higher air power and features two motors for top head driving. It can drill using both a mud pump and an air compressor, achieving very fast drilling speeds. With air compressor drilling, it can achieve a drilling rate of 20-25 meters per hour in hard rock.
Technical Parameters
| Bore diameter(Hammer) | 90-300mm |
| Bore depth | 150m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 3500-3800Nm |
| Rotary speed | 40-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 3500×1700×2250MM |
| Weight | 3700kg |
| Diesel engine | 42KW |
Product advantages
1.Small size, light weight and easy installation.
2.It is composed of three parts, the main engine, the pump station, and the console.
3.It can be put into production in the original transportation and prospecting roadway, which protects the overall structure of the mine. It can also be used for 0-90 degree drilling on the surface.
4.Flexible layout of drilling rigs, mechanized twisting and unloading of drill rods, reduce labor intensity of workers and improve work efficiency.
5.Adopt box-type feed frame, tighten the gripper, rotate the power head to drill, and the oil cylinder pulls and sends the drilling tool.
6.With linkage function, centralized control through the console, simple and safe, and stepless speed regulation.
7.Hollow shaft design, the length of the drill rod is not limited by the progress of the drilling machine. It can be drilled at any inclination angle of 360°.
Application:
RCF150C 150m small water well drilling machine uses newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,it is mainly used for farm irrigation well drilling ,geothermal well drilling ,drinking well drilling ,yard well drilling ,hydrology wells drilling, civil use water well drilling, agriculture irrigation etc projects.

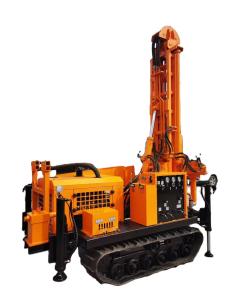

Machine pictures
