Drilling Machine for Faster Drilling Rates and Convenient Hole Deflection
Product Description
RCF500C deep water well drilling rig is a new product of our company. It adopts high-quality materials and stylish and compact design, which makes our drilling rig more efficient. It also adopts the latest model and cutting-edge hydropower technology, with low energy consumption, large rotation torque and convenient well inclination control. Our company's water well drilling rig is mainly used in resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects. Our water drilling rigs have received positive feedback from customers and have been truly verified by the market.
Technical Parameters
| Model | RCF500C |
| Weight(kg) | 11500 | Drill pipe diameter(mm) | Φ102 Φ108 Φ114 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 500 | Rig lifting force(T) | 26 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30° | Width of loading(m) | 2.85 |
| Equipped capacitor(kw) | 118 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7500-10000 |
| Air consumption(m³/min) | 17-42 | Dimension(mm) | 6200×2200×2650 |
| Swing speed(rpm) | 40-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.7 |
| The engine brand | Yuchai engine |
Feature:
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
Our service
1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

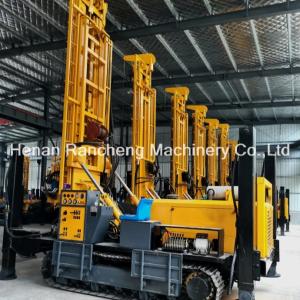

Machine Picture Display
