300m Water Well Drilling Rig Machiner With CE 85KW Engine

Brand Name : RanCheng

Model Number : RCF300C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Name : 300m deep rock drilling machine

Model : RCF300C

Power : 85KW engine

bore depth : 300m

max bore diameter : 350mm

drill pipe : 89mm/102mm

tower : 3.4m

Contact Now

Europe Best Selling 300m High Quality Water Well Drilling Rig Machiner with CE

Product Description

The RCF300C hydraulic crawler-mounted deepwater drilling machine is designed for drilling depths up to 300 meters. It integrates advanced hydraulic technology and a top head driving system, providing powerful rotary torque for efficient drilling. The rig’s compact structure ensures easy maneuverability while maintaining stability during operation, thanks to its adjustable compensation mast. When drilling, the mast is securely supported on the ground, ensuring excellent borehole stability.

This deep well drilling rig is ideal for a wide range of applications, including irrigation wells, home water wells, geothermal wells, hydrology wells, and industrial drilling projects. It offers both reliability and flexibility, making it suitable for various drilling environments. Whether for domestic, agricultural, or industrial purposes, the RCF300C is built to meet the demanding requirements of deep well drilling projects.

Technical Parameters

Model RCF300C
Bore diameter(Hammer) 100-350mm
Bore depth 300m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4200×2200×2600mm
Weight 7200Kg
Diesel engine 85KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling

Advantages

The RCF300C drilling rig is equipped with four high hydraulic outriggers, which make loading and transportation more convenient, eliminating the need for a crane. The rig is mounted on a professional excavator chassis, providing long service life and excellent mobility, even in muddy or challenging terrains.

With high configuration, the rig features key components and hydraulic systems from renowned brands. The mainframe is constructed using high-quality, high-strength low-carbon alloy steel, ensuring enhanced durability and resistance to wear.

The hydraulic system is designed with a parallel gearbox that separates the oil pump unit, allowing for better power distribution and reducing maintenance costs. Additionally, the 75.8KW Yuchai diesel engine ensures reliable performance, offering sufficient power for efficient drilling.

The composite tower design offers a 3.4-meter long stroke with double-cylinder lifting capacity of up to 18 tons, providing strong lifting power for handling heavy loads and ensuring smooth operation.

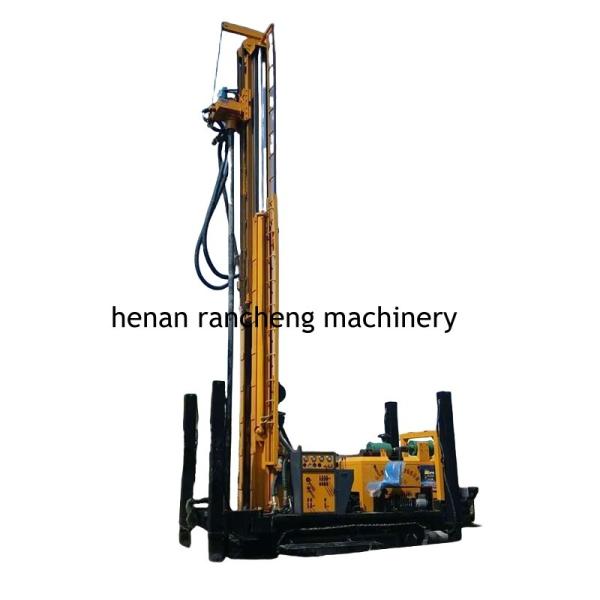

Machine picture display

300m Water Well Drilling Rig Machiner With CE 85KW Engine300m Water Well Drilling Rig Machiner With CE 85KW Engine

300m Water Well Drilling Rig Machiner With CE 85KW Engine

300m Water Well Drilling Rig Machiner With CE 85KW Engine
