400m Depth Water Well Drilling Machine with Diesel Engine Power
Machine Introduction
Introducing the RCF400C Multi-Functional Drilling Rig – the ultimate solution for your drilling needs. Designed with versatility and efficiency in mind, this crawler-type rig is engineered to tackle a wide range of drilling applications, making it an indispensable tool for construction, mining, and geological exploration.
With an impressive drill depth of up to 400 meters, the RCF400C is capable of handling various geological conditions, ensuring that you can reach your target depth with ease. Its adaptable drilling diameter ranges from 140mm to 350mm, allowing for flexibility in different projects and requirements. Whether you are drilling for water, mineral exploration, or foundation work, this rig is built to deliver exceptional performance.
One of the standout features of the RCF400C is its dual drilling capability. Equipped with both a mud pump and an air compressor, this rig can efficiently handle both mud and air drilling methods. This versatility not only enhances the rig’s performance in diverse environments but also optimizes the drilling process, reducing downtime and increasing productivity.
Powering the RCF400C is a robust 92KW Yuchai engine, known for its reliability and efficiency. This powerful engine ensures that the rig operates smoothly, even in the most challenging conditions, providing you with the confidence to tackle any project head-on.
Built with durability and user-friendliness in mind, the RCF400C features a crawler design that enhances stability and mobility across various terrains. Its compact size allows for easy transportation and setup, making it an ideal choice for both urban and remote locations.
In summary, the RCF400C Multi-Functional Drilling Rig is your go-to solution for efficient, reliable, and versatile drilling. Elevate your drilling operations with this state-of-the-art rig and experience the difference in performance and productivity.
Technical Parameters
| Bore diameter(Hammer) | 140-350mm |
| Bore depth | 400m |
| Air consumption | 17-36m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1.5m/2m/3m/6m |
| Lifting force | 22T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| Max torque of rotary | 6200-9000Nm |
| Rotary speed | 66-135r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.4m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6000×2100×2550mm |
| Weight | 9200Kg |
| Diesel engine | 92KW Yuchai engine |
| Drilling way | Air compressor drilling or mud pump drilling |
Application
1. RCF400C crawler water well drilling rig can use air down-the-hole hammer drilling and mud drilling.
2. Centralized control console, convenient for various operations and controls. Quick lifting, reducing auxiliary time and improving work efficiency.
3. The chassis is equipped with the main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed system, etc.
4. This machine is a hydraulic rotary crawler water well drilling rig with directional circulation function. It can be equipped with a mud pump, using mud as flushing fluid, and equipped with a suitable drill bit, it can drill on clay, sand and rock.

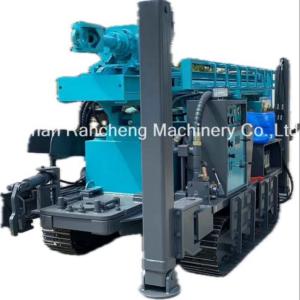

Machine Pictures
