600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine

Name: 600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine
Brand: RanCheng
Price: 1 USD

China 600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine factory

Brand Name : RanCheng

Model Number : RCF600C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 40" container

Model : RCF600C

Bore depth : 600m

Bore diameter : 140-400mm

Air consumption : 17-42m³/min

Air pressure : 1.7-3.5Mpa

Pipe diameter : 102/108/114mm

Pipe length : 1m/2m/3m/6m

Lifting force : 26T

Contact Now

600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine

Machine Introduction

RCF600C deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole drilling rig combines higher pneumatic power and plays an important role in increasing drilling speed.

It adopts the latest model and advanced hydraulic technology, with low consumption, large rotation torque, convenient wellbore deflection, made of high-quality materials, stylish and compact design, making the drilling rig more efficient, with low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rig has been truly verified by the market and received positive feedback from customers.

Technical Parameters

Bore diameter(Hammer)	140-400mm
Bore depth	600m
Air consumption	17-42m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	102/108/114mm
Pipe length	1m/2m/3m/6m
Lifting force	26T
Fast lifting speed	20m/min
Fast feeding speed	40m/min
One-time advance length	6.6m
Max torque of rotary	7500-10000Nm
Rotary speed	40-130r/min
Hoist lifting capacity	2T
Mud Pump flow	600L/min or 850L/min (option)
High hydraulic leg	1.7m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6200×2200×2650mm
Width of loading	2.85m
Weight	11500Kg
Diesel engine	118KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

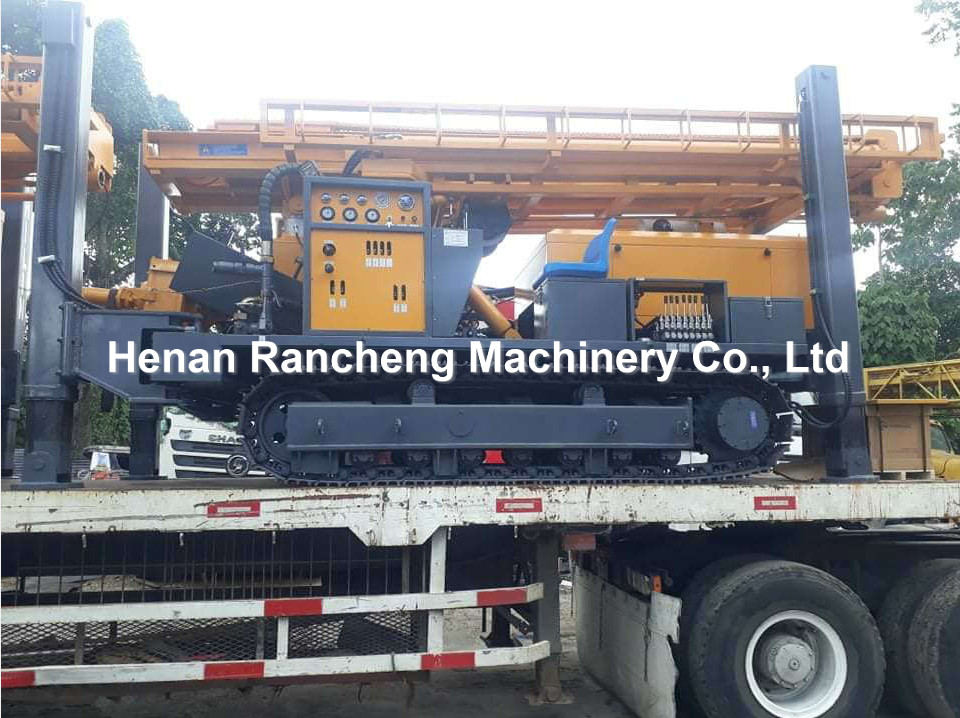

Machine Pictures

600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine

600m Deep Water Well Diesel Engine Drilling Rig RCF600C DTH Mining Crawler Mounted Machine Images
